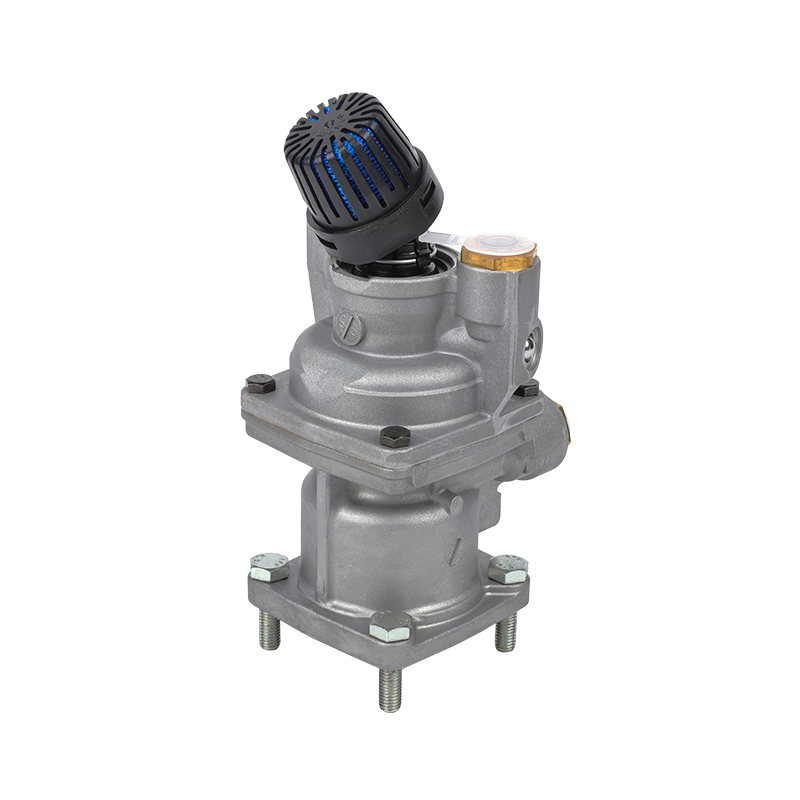

Brake master valve foot brake valve OE# 4613152690

Brake master valve

Product name	Foot brake valve
Product number	4613152690
Product Category	Equipment
Pedal Pedal	No
Weight (lb)	2.6250
Calculated Volume (dm³)	0.0000
Weight (KG)	1.2000
GTIN	4057875208983
UPC	193133302827
Technical standard	OE standard
Product quality	High-end original quality
Temperature range	-40°C to +80°C
Maximum working pressure	12.0 bar
Assembly	4x M8
Emission	Silencer
Dominant pressure	0.50 bar
Distance between holes	61.0 x 61.0 mm
Port thread 11	M22 x 1.5 / Voss 230 NG 12
Port thread 22	M22 x 1.5 / Voss 230 NG12
Port thread 12	M22 x 1.5 / Voss 230 NG12
Port thread 21	M22 x 1.5 / Voss230 NG13
Port thread 3	Silencer

Specifications
FAQ
Do You Have Any Question?

C&C 100351400087AA0A

FAW 351401050A

JIEFANG (FAW) 3514010-50A

Foot brake valve with retarder control

Features and Innovation

---Foot brake valves with gradual brake application function

---Load empty function

---Retarder control function

---Integrated pressure limitation

---Operating pressure up to 12 bar / 174 psi

---Compact, low-weight design

---Noise reduction via silencer

Customer Value

---Smooth gradual braking experience with low application force.

---Short brake response times to achieve best stopping distances.

---Adjustable braking force between axles.

---Controls brake force on front axle to harmonize lining wear.

---Different operating pressure ranges means customers can adapt smaller components (e.g. compact brake chambers and actuators).

---Cost-efficient due to integrated pressure limiting functions.

Application

---Bus, Trailer.
