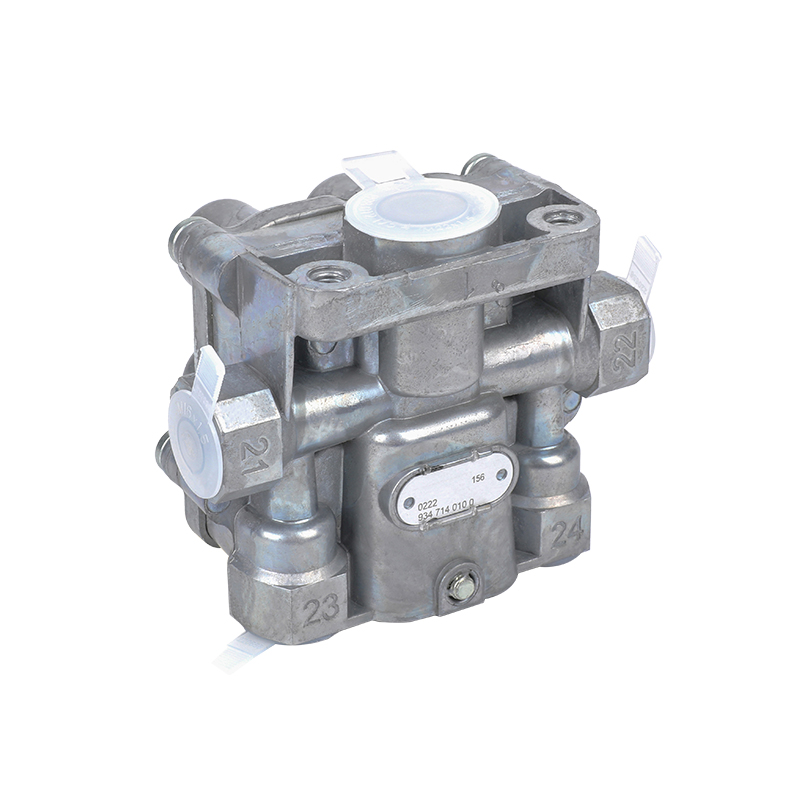

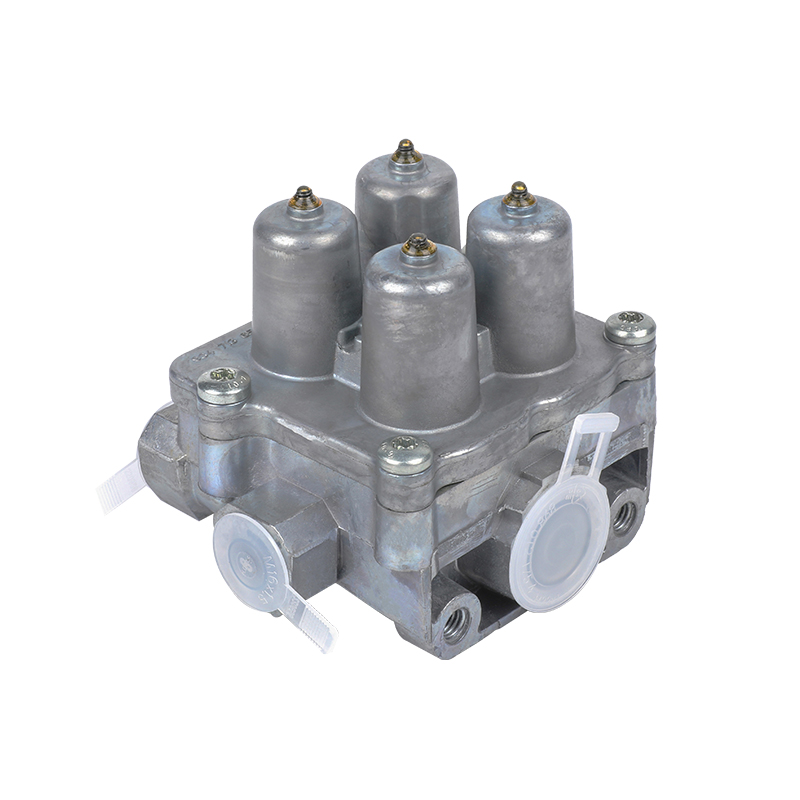

Four-circuit protection valve OE# 9347140100

Four-circuit protection valve

Product name	Four-circuit protection valve
Product number	9347140100
Product Category	Equipment
Weight (lb)
Calculated Volume (dm³)	0.86328
Size	109 x 90 x 88
Weight (KG)	0.674
GTIN	4057876057290
UPC
Technical standard	OE standard
Product quality	High-end original quality
Temperature range	-40°C to +90°C
Type	dynamic
Inflation pressure	3.5 bar
Dynamic Closing Pressure 21	6.4 bar
Dynamic Closing Pressure 23	6.4 bar
Dynamic Closing Pressure 24	6.4 bar
Dynamic Closing Pressure 22	6.4 bar
opening pressure 21	6.9 bar
Opening pressure 22	6.9 bar
Opening pressure 23	7 bar
opening pressure 24	6.9 bar
Opening pressure (bar) for lines 1+2	7.0 + 6.9 bar
Maximum working pressure	13.0 bar
Port thread 1	M22 x 1.5
Port thread 22	M16 x 1.5
Port thread 21	M16 x 1.5
Port thread 23	M16 x 1.5
Port thread 24	M16 x 1.5
Port thread 4	M16 x 1.5
Pressure Sensor	no

Specifications
FAQ
Do You Have Any Question?

CNHTC	WG9000360366/4
DAF	1524857
HYUNDAI	AA61K 43570
IRISBUS	5801102059
IVECO	5801102059
KIA	AA61K43570
KING LONG	235500100
MAN	81521516073
MAN	81521516082
MAN	81521516092
MAN	81521519092
MAN	81521516013
MAN	81521516081
NEOPLAN	81521516092

Four-circuit Protection Valves secure pressure in a multi-circuit brake system to improve overall braking performance. They distribute compressed air, adjust pressure to the respective circuits and protect healthy circuits in cases of circuit failure.

Features and Innovation

---Four Circuit Protection Valve (FCPV) distributes compressed air to separate circuits of the truck.

---Our genuine parts are made of high-quality materials and are rigorously tested before they leave our factories.

---FCPV adjust the pressure in your truck to protect healthy circuits in the case of circuit failure elsewhere in the system.

---Serves as a distribution point for air pressure in trucks.

Customer Value

---FCPV enables a safe working pressure in the intact circuits of a braking system if one circuit has failed.

---Compatible with a wide range of OEM trucks and off-highway vehicles in heavy, medium and light-duty markets.

---Optimal functionality of the braking system for a longer period.

---Less vehicle downtime with reduced servicing and maintenance costs.

How long can I get the feedback after we send an inquiry?

We will reply to you within 12 hours of the working day.

Are you a direct manufacturer or trading company?

We are a manufacturer, and also have our own international sales department. We produce and sell all by ourselves.

What products can you offer?

We mainly produce a variety of pneumatic control valves, which are used in the shift system of heavy-duty truck transmission and brake systems for trucks and trailers, and passenger cars. At the same time, we can also provide customers with OEM production services.

What applications do your products relate to?

Our products mainly involve the transmission and brake system of commercial vehicles.

Can you do customized products?

Yes, we can make customized products for customers in related industries. We can develop and produce products based on the drawings or samples provided by customers.

Do you have some standard parts?

We produce some standard parts used in railway freight wagon bogie and wheelset components, including roller, lock nut, adapter sleeves, and other accessories. We also make and sell trolling motor Prop Nut.

How about the capacity of your company?

We have a six-axis robotic production line for the production of transmission pneumatic control valves, and the daily capacity can reach 1,200 sets.

How many employees of your company? What about the technicians?

The company has more than 50 employees, including more than ten professional technicians and engineers.

How to guarantee the quality of your goods?

The company has established an ISO9001 quality management system and passed iatf16949 certification. From product development, the sample manufacturing to mass production, each step is carried out according to the quality control plan and process flow. FMEA and SPC are necessary to control methods. Laboratory testing equipment includes CMM, hardness testers, metallographic testers, roughness testers, film thickness testers, image projectors, leakage testers, etc. During the production process, perform the first article inspection, process sampling inspection, and final inspection of final products. The above systems and processes ensure that the product quality meets the requirements.

What‘s the payment term?

When we quote for you, we will confirm the method of order transaction, FOB, CIF, CNF, etc. For mass production goods, you need to pay a 30% deposit before producing and a 70% balance against a copy of documents. The most common way is by T/T. L/C is also acceptable.
