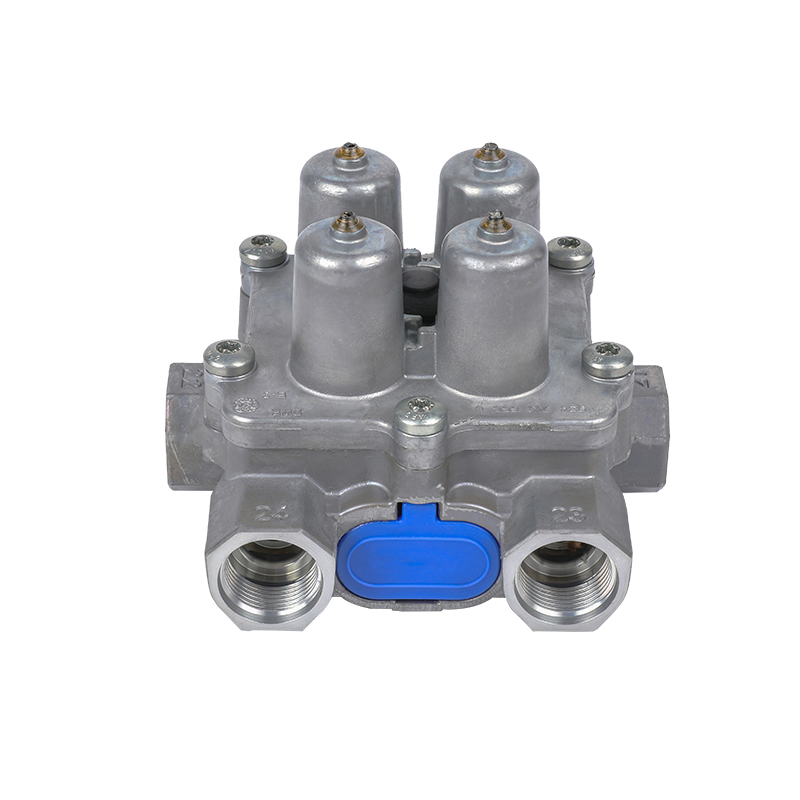

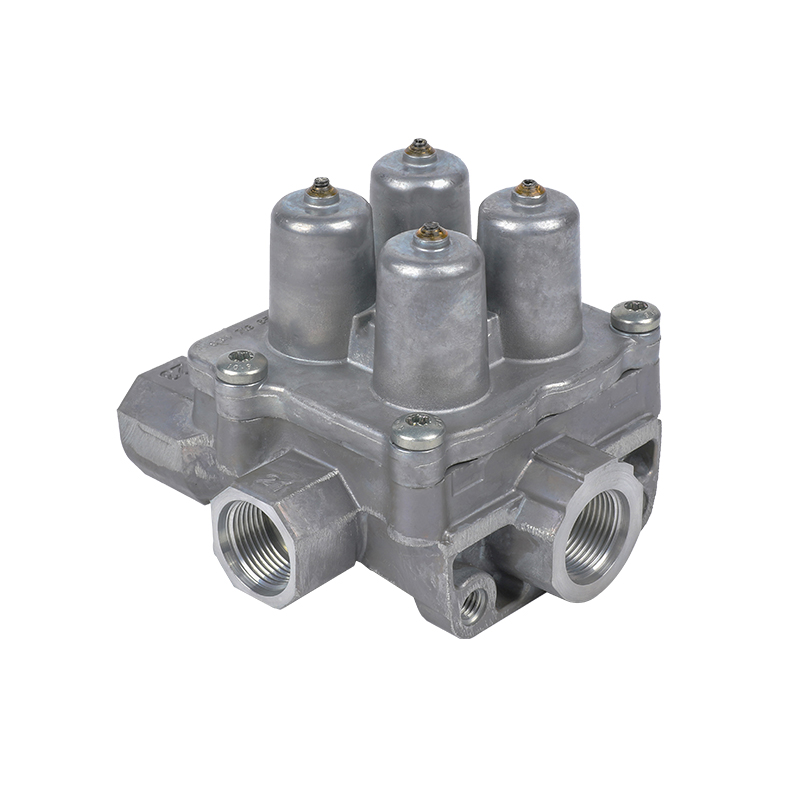

Four-circuit protection valve OE# 9347144030

Four-circuit protection valve

Product name	Four-circuit protection valve
Product number	9347144030
Product Category	Equipment
Weight (lb)	2.7558
Calculated Volume (dm³)	1.19000
Size	119 x 100 x 100
Weight (KG)	1.250
GTIN	4057875290889
UPC	193133362975
Technical standard	OE standard
Product quality	High-end original quality
Temperature range	-40°C to +90°C
Type
Inflation pressure	3.5 bar
Dynamic Closing Pressure 21	6.4 bar
Dynamic Closing Pressure 23	6.4 bar
Dynamic Closing Pressure 24	6.4 bar
Dynamic Closing Pressure 22	6.4 bar
opening pressure 21	6.9 bar
Opening pressure 22	6.9 bar
Opening pressure 23	7 bar
opening pressure 24	6.9 bar
Opening pressure (bar) for lines 1+2	7.0 + 6.9 bar
Maximum working pressure	13.0 bar
Port thread 1	M22 x 1.5 JED-388
Port thread 22	M22 x 1.5 JED - 388
Port thread 21	M22 x 1.5 JED - 388
Port thread 23	M22 x 1.5 JED - 388
Port thread 24	M22 x 1.5
Port thread 4	M22 x 1.5 JED - 388
Pressure Sensor	no

Specifications
FAQ
Do You Have Any Question?

BEIBEN	5204310306
C&C	100353400016AB0A
CNHTC	WG9000360523/1
CNHTC	WG90003605232
CNHTC	AZ87353400100
CNHTC	WG9000360523/2
FOTON	1525835685010
FOTON	1612135600003
FOTON	L0356502003A0
JAC	59480-Y43G6
KING LONG	235500350
SHAANXI	81521516094
SUNWIN	SWB563050138

Four-circuit Protection Valves secure pressure in a multi-circuit brake system to improve overall braking performance. They distribute compressed air, adjust pressure to the respective circuits and protect healthy circuits in cases of circuit failure.

Features and Innovation

---Four Circuit Protection Valve (FCPV) distributes compressed air to separate circuits of the truck.

---Our genuine parts are made of high-quality materials and are rigorously tested before they leave our factories.

---FCPV adjust the pressure in your truck to protect healthy circuits in the case of circuit failure elsewhere in the system.

---Serves as a distribution point for air pressure in trucks.

Customer Value

---FCPV enables a safe working pressure in the intact circuits of a braking system if one circuit has failed.

---Compatible with a wide range of OEM trucks and off-highway vehicles in heavy, medium and light-duty markets.

---Optimal functionality of the braking system for a longer period.

---Less vehicle downtime with reduced servicing and maintenance costs.
